Amplificateur HF HAL 600


Cet amplificateur HF est construit et vendu par IW2ANU. Il couvre les bandes du 160 au 10m, WARC incluses, modes SSB CW RTTY,  puissance d'entrée entre 10 et 95 watts, puissance de sortie maximale de 500 watts en CW, étage final à base de MOS-FET, compatible avec les transceivers Yaesu, Kenwood, Icom...



changement de bande automatique, différentes sécurités, dimensions 261 x 334 x 153 mm, poids 14kg pour un prix de 1800€...


 caractéristiques:

Freq’s: 1.8 ~ 29.7 MHz (incl. WARC)
Automatic Bands  switching
Compatible with transceivers – Yaesu, Kenwood, ICOM (CAT).
Modes: SSB, CW, RTTY
PW Pilot: 10 ~ 95 W (50 W)
(Automatic selection: NO ALC)
Output Power: 600W PEP / 500W CW
Drain voltage: 50 V
Drain Current: 20 A max.
Input Impedance: 50E (Unbalanced)
Output Impedance: 50E (Unbalanced)
Final Transistors: BLF177 x 4 (MOS-FET by PHILIPS)
Circuit: Class AB push-pull
Harmonics: -45 dB (<)
IMD3: -36 dB (typ.)
Output filters: LPF 5th order Car.(160m, 80m, 40m, 30/20m, 17/15m, 12/10m)
Cooling: Forced air (fan)
MPU: Hitachi / Renesas 16bit

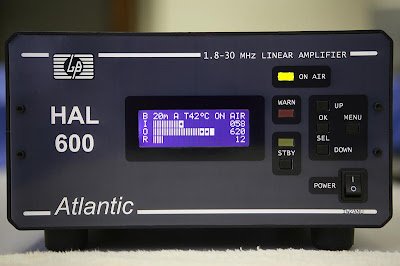

DISPLAY: Back-lit LCD FSTN 20×4;

- Band
- Gearbox Automatic band
- Temperature of power stage
- State (Ready, StandBy mode, On Air,
Protect, Warning message
- Security alerts
- Signal input attenuators
- Power Input (Graph / Numeric)
- Power Output (Graph / Numeric)
- Reflected Power (Graph / Numeric)

in standby, Menu:
- Start (StandBy / Ready)
- AutoBand (Auto / CAT)
- Temperature (Celsius / Farenheit)
Over Drive Protection
- Limiting Output Power
- High SWR (SWR> 2.5:1)
- Temperature (Over Temp)
- Faulty Fuses PA
- Possible changes of band incorrect

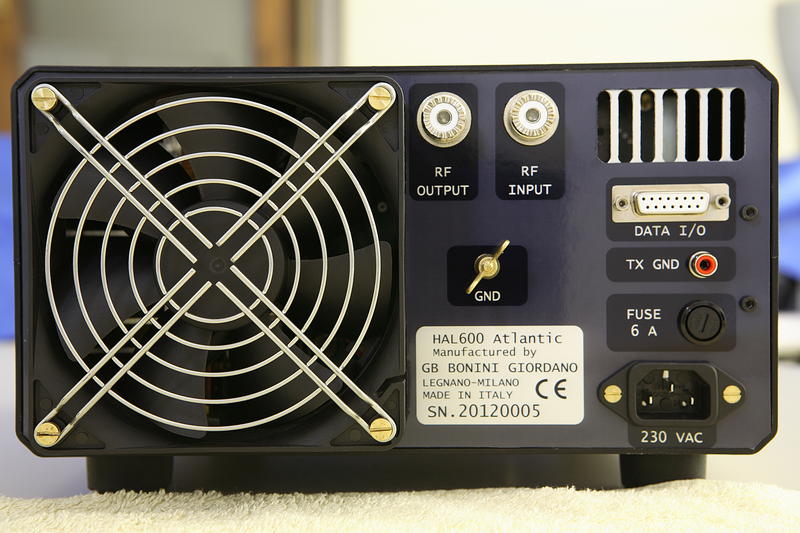

Connectors Input / Output: UHF SO-239 Teflon
Power supply: AC 230V 6A max.

Possible remote control by RS232 Com Port.
